Headlocks

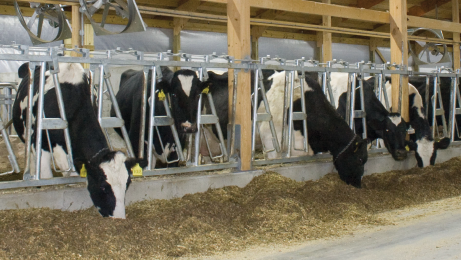

J & D Manufacturing’s popular Square Tube Superlock Panel is now fully adjustable! Neck openings have three adjustment levels to give an additional 1¼” opening. J&D’s full line of square tube mounting brackets offer endless combinations to flush mount, face mount, or comfort tilt mount your headlock panels. New and improved features include a hideaway control rod handle and an easy release latch to keep your fingers clear during individual release.

Features:

• Standard panels available in cow or heifer models
• 2" x 2" square tubing on top and bottom rails
• Panels are hot dip galvanized INSIDE and OUT after welding
• 7 1/2", 8 1/8", and 8 3/4" adjustable neck opening on cow panels 6 1/4", 6 7/8", and 7 1/2" adjustable neck opening on heifer panels
• 2 1/2" spacing between openings on cow panels 19" spacing between openings on heifer panels
• 2" x 2" square tubing on top and bottom rails
• Panels are hot dip galvanized INSIDE and OUT after welding
• Easy release safety latch with no loops or eyeholes to catch your finger in
• Hideaway control handle folds down flat to panel
• 40" high standard panel height
• Wide 17" to 18 1/2" head entry opening for easy access (head opening size changes when neck opening is adjusted)
• Lock in one or more animals and release the rest
• Swing arm is counterweighted to automatically return to the open position
• Overswing allows quick and safe release of a downed cow
• Rubber cushion on swing arm return to reduce noise
• No latch movement in open position
• Operate up to 200' of headlocks with a single control rod handle

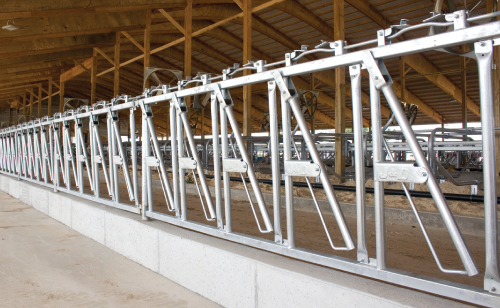

No one can beat the Hercules on weight, strength, adjustability and performance! The new Hercules headlock panels from J&D Manufacturing are the HEAVIEST adjustable headlocks on the market today. Hercules panels include “beefed up” hardware for extra longevity.

Features:

• The HEAVIEST adjustable headlocks on the market
• 7 and 10 gauge steel HERCULES construction
• 3/8" Grade 8 and Grade 5 bolts and nuts on main swing arm and yoke connections
• Hardened bushings for bolt longevity
• Heavy duty 2" x 2" square tubing on top and bottom rails
• Panels are hot dip galvanized INSIDE and OUT after welding
• Extra large rubber bumper on swing arm return to reduce noise
• Adjustable neck openings• 40" standard panel height
• Easy release safety latch with no loops or eyeholes to catch your finger in
• Hideaway control handle folds down flat to panel
• Wide 17” to18½” head entry opening for easy access (head opening size changes when neck opening is adjusted)
• Lock in one or more animals and release the rest
• Swing arm is counterweighted to automatically return to the open position
• Overswing allows quick and safe release of a downed cow
• No latch movement in open position
• Operate up to 200' of headlocks with a single control rod handle
