Headlocks

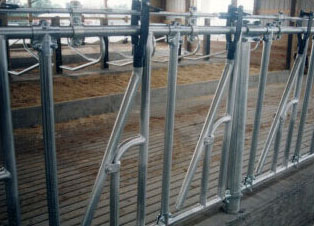

Self Locking Panels from Freudenthal

Freudenthal Self Locking Panel has become of interest to many of today's Dairy Farmers. The Panels have been designed to hold animals to make health checks, breeding, and vaccination a much easier task. The Dairy Farmer has the option for the animals to self lock themselves or if it is not desired, free access is also available. When the cows or young stock are finished eating, one simple lever releases the entire row. If you wish to hold one, two, or any amount of animals, simply flip lever above each animal and release the rest with one turn of the lever. Panels can be spliced together to reach almost any length. Freudenthal pays close attention to detail when designing equipment, as in our Self Locking Panels. Not only is the Panel constructed of the highest quality tubing available, our pivot pipes come standard with inserted case hardened bushing and grade 8 bolts. Our top control is completely solid and each neck opening is adjustable. These are the heaviest and strongest Panels on the market, weighing 235 lbs per 10' section.

Features:
  • A standard Panel for young stock nine months of age and younger would be 10' long with six openings x 32" high
  • A standard Panel for animals nine months of age and older would be 10' long with five or six openings x 40" high

Freudenthal Self Locking Panels are available in any length and we will put in as many openings as room allows, unless otherwise specified. All Panels are priced by the foot.

Install Panels 3" above curb.
Recommended curb heights are:
12" curb – 200 to 600 lbs.
14" curb – 600 to 1000 lbs.
16" curb – 1000 up lbs.

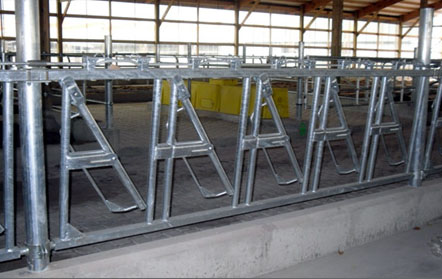

Auto Release Self Locking Panels from Freudenthal

Freudenthal Manufacturing Auto Release Self Locking Panel is the heaviest built in the Dairy Industry. It boasts 2" x 2" heavy duty 10 gauge square tubing on top and bottom rails. All round pipes are 10 gauge and the swing arm is heavy duty 6 gauge with hardened bushings inserted and 1/2" grade 8 bolts. After welding and fabrication, the entire panel is hot dipped galvanized, both inside and out guaranteeing long product life. The pivot arm has a hardened bushing and 1/2" grade 8 bolt ensuring low maintenance and is also counter-weighted for automatic return. Our Auto Release Self Locking Panel can be face mounted or comfort tilt mounted to any size post. Freudenthal Manufacturing Auto Release Self Locking Panel is unmatched by any of our competitors. We invite you to check it out to see for yourself.

Features:
  • Entire Panel made of Heavy Duty 10 gauge Tubing
  • Heavy Duty 6 gauge Swing Arms with Hardened Bushings Inserted and 7/16" grade 8 bolts
  • Stiffener Brackets welded at each Head Location to gurantee Rigidity and Eliminate Breakage
  • Panels are Hot Dipped Galvanized after Welding Inside and Out
  • Wide 17" Opening for Easy Cow Access
  • Allows you to Lock in One or more Animals and Release the Rest
  • Natural Cushion on Pivot Arm for Noise Reduction
  • No Latch Movement in Open Position
  • Available in 6'0" - 8'0" - 10'0" - 12'0" Lengths
  • 12'0" Panels Weigh 275 lbs
  • Heifer Panels are also available

Install Panels 3" above curb.
Recommended curb heights are:
12" curb – 200 to 600 lbs.
14" curb – 600 to 1000 lbs.
16" curb – 1000 up lbs.
